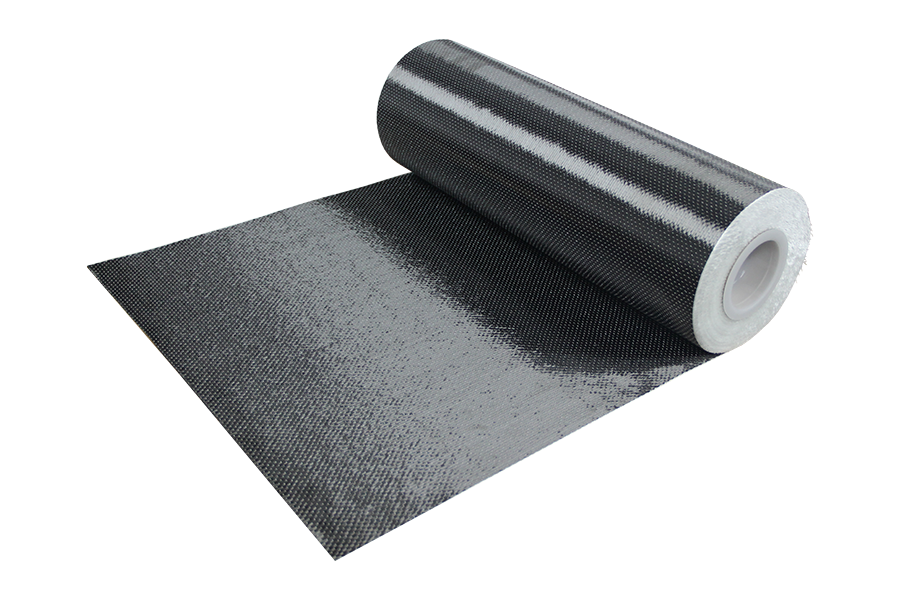

PCF-F300 Carbon Fiber Cloth
Woven from unidirectional high-strength carbon fibre and bonded with impregnating adhesive, this is a high-performance material for lightweight tensile, shear and seismic strengthening of concrete structures.
Product Certification：
Safety appraisal report
Scope of application：
Applied to strengthening beams, slabs, columns and roof trusses in buildings, repairing bridges, tunnels and docks in transport infrastructure, and protecting building components in highly corrosive environments such as chemical plants and coastal areas.
Product Advantages
Lightweight and strong, efficient strengthening
Very light for easy handling and installation, adding almost no structural load. High strength and high modulus give strengthening performance comparable to steel plate, efficiently raising member capacity.
Flexible and formable, suits complex surfaces
Conforms closely to concrete surfaces and can be cut freely on site, suiting shaped columns, curved members and other complex structures.
Corrosion resistant, easy to install
Resists acid and alkali attack in harsh environments. The simple installation process shortens project schedules and speeds up renovation work.
Technical parameters
| Material | T700S high-strength carbon fiber |
| Substrate | concrete |
| Tensile strength (standard) | ≥3400 MPa |
| Tensile modulus | ≥2.3×10⁵ MPa |
| Elongation | ≥1.6% |
| Flexural strength | ≥700 MPa |
| Interlaminar shear strength | ≥45 MPa |
| FRP-to-substrate tensile bond strength | To concrete and masonry substrates: ≥2.5 MPa，with substrate cohesive failure |
| Mass per unit area | ≤300g/m² |
| Design thickness | 0.167 mm |
Specification and Model
| Product spec | Coverage (m²/box) | Item no. |
|---|---|---|
| 50cm | 25 | 31130003 |
| 10cm | 25 | 31130018 |
| 20cm | 30 | 31130019 |
