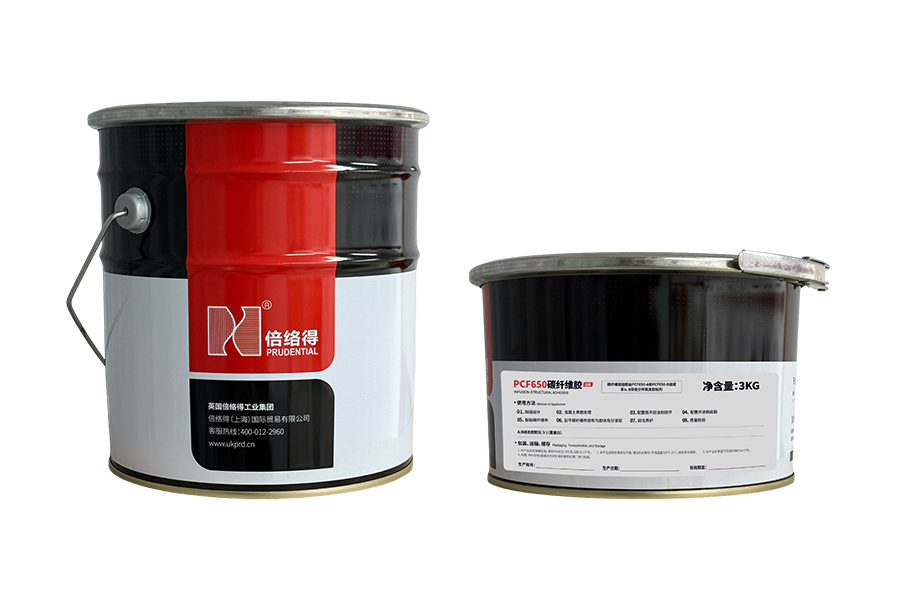

PCF650 Carbon Fiber Adhesive
The Prudential carbon fibre impregnating adhesive is a two-component Grade A modified epoxy structural adhesive. It fully saturates the carbon fibre cloth and bonds it firmly to the substrate for composite strengthening of concrete members.
Product Certification：
Safety appraisal report / VOC / Hazardous substances report / Acute toxicity report
Scope of application：
Applied to strengthening beams, slabs, columns and roof trusses in buildings, repairing bridges, tunnels and docks in transport infrastructure, and protecting building components in highly corrosive environments such as chemical plants and coastal areas.
Product Advantages
Excellent wetting and penetration
Low viscosity with strong thixotropy gives excellent wetting and penetration, fully saturating the carbon fibre cloth. Application is smooth and controllable.
Outstanding mechanical performance, tough and stable
Once cured, the adhesive layer has high mechanical strength and toughness, resisting brittle failure and ensuring effective bonding between cloth and substrate.
Durable, environmentally friendly, widely applicable
Strong ageing resistance and resistance to acids, alkalis and water. Cures at room temperature with low shrinkage, contains no volatile solvents, is non-toxic and easy to apply on site.
Technical parameters
| Composition | A/B two-component epoxy adhesive |
| Substrate | concrete |
| Tensile strength | ≥38 MPa |
| Modulus of elasticity | ≥2400 MPa |
| Flexural strength | ≥50 MPa |
| Compressive strength | ≥70 MPa |
| Elongation | ≥1.5% |
| Non-volatile content | ≥99% |
| Steel-to-steel tensile bond strength | ≥40 MPa |
| Steel-to-C45 concrete tensile bond strength | ≥2.5 MPa |
| Steel-to-steel tensile shear strength | ≥14 MPa |
Specification and Model
| Product spec | Item no. |
|---|---|
| 9kg:3kg | 31130017 |
