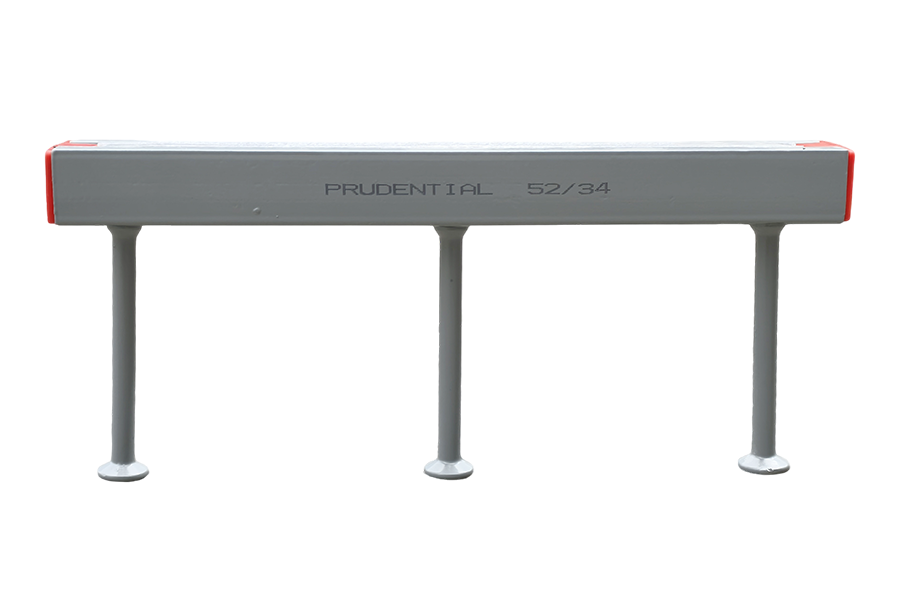

DC Cast-in Channel
The Prudential cast-in channel is embedded in the concrete and offers an adjustable slot, allowing flexible positioning for curtain wall and MEP support connections.
Product Certification：
Load capacity report / Fire resistance tensile-shear slip report / 2 million-cycle fatigue test report / Material analysis report / 1200-hour salt spray test report / Static load capacity test report / ETA certification / Zinc coating thickness report
Scope of application：
Suitable for cast-in fixing in concrete: curtain walls, MEP pipe supports and precast components.
Product Advantages
Slot locking, strong load capacity
Used with dedicated T-bolts for interlocking and tightening, loads are evenly distributed. Excellent pull-out and shear performance handles curtain wall and MEP pipe loads.
Flexible adjustment, wide compatibility
T-bolts slide freely along the channel, allowing lateral adjustment before or after installation with high tolerance. Suits both precast and cast-in-place concrete across disciplines.
Corrosion resistant, reliable long term
Hot-dip galvanised or stainless steel finish for ageing and seismic resistance. The cast-in system resists corrosion and loosening, keeping the anchoring stable over the project's life.
Technical parameters
| Material | Q355B、304、316 |
| Surface treatment | Hot-dip galvanised |
| Composition | Channel steel、anchor rib/I-beam |
| Anchor ribs | 2、3、4 |
Specification and Model
| Product model | Channel opening (mm) | Anchor rib spec (mm) | Serration | anchor ribProcess |
|---|---|---|---|---|
| DCR-38/23-YT | 38/23 | 11*80 | Dovetail | Riveted |
| DCR-38/23-PT | 38/23 | 11*80 | Flat | Riveted |
| DCR-38/23-NT | 38/23 | 11*80 | Ribbed | Riveted |
| DCR-40/22-YT | 40/22 | 11*80 | Dovetail | Riveted |
| DCR-40/22-PT | 40/22 | 11*80 | Flat | Riveted |
| DCR-40/22-NT | 40/22 | 11*80 | Ribbed | Riveted |
| DCR-50/30-YT | 50/30 | 13*120 | Dovetail | Riveted |
| DCR-50/30-PT | 50/30 | 13*120 | Flat | Riveted |
| DCR-50/30-NT | 50/30 | 13*120 | Ribbed | Riveted |
| DCR-52/34-YT | 52/34 | 13*120 | Dovetail | Riveted |
| DCR-52/34-PT | 52/34 | 13*120 | Flat | Riveted |
| DCR-52/34-NT | 52/34 | 13*120 | Ribbed | Riveted |

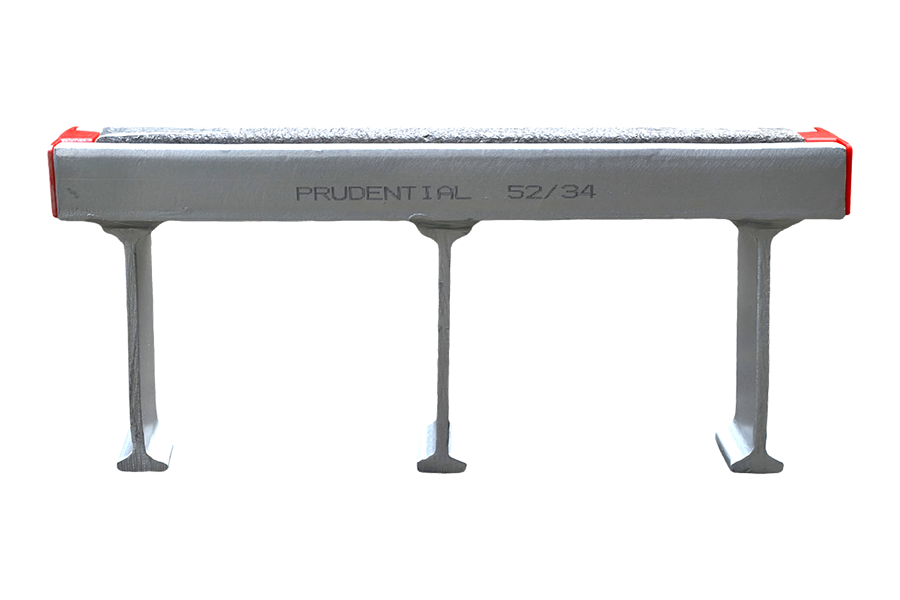

| DCH-38/23-YT | 38/23 | 4*22*80 | Dovetail | Welded |
| DCH-38/23-PT | 38/23 | 4*22*80 | Flat | Welded |
| DCH-38/23-NT | 38/23 | 4*22*80 | Ribbed | Welded |
| DCH-40/22-YT | 40/22 | 4*22*80 | Dovetail | Welded |
| DCH-40/22-PT | 40/22 | 4*22*80 | Flat | Welded |
| DCH-40/22-NT | 40/22 | 4*22*80 | Ribbed | Welded |
| DCH-50/30-YT | 50/30 | 4*25*120 | Dovetail | Welded |
| DCH-50/30-PT | 50/30 | 4*25*120 | Flat | Welded |
| DCH-50/30-NT | 50/30 | 4*25*120 | Ribbed | Welded |
| DCH-52/34-YT | 52/34 | 4*25*120 | Dovetail | Welded |
| DCH-52/34-PT | 52/34 | 4*25*120 | Flat | Welded |
| DCH-52/34-NT | 52/34 | 4*25*120 | Ribbed | Welded |
