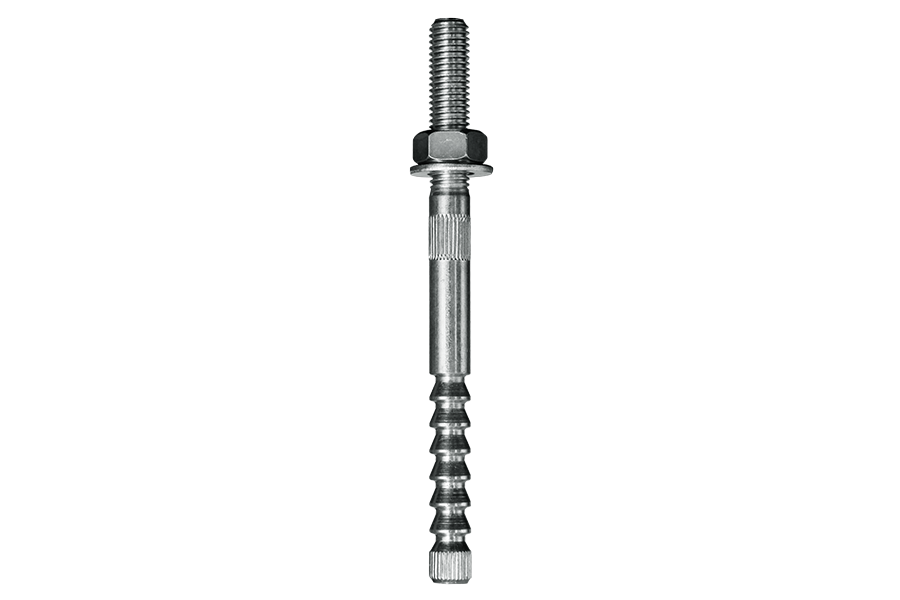

Prosicc Special Cone Chemical Anchor
A chemical anchor combining a special inverted-cone rod with injection adhesive, delivering heavy-duty, seismic-resistant and heat-resistant anchoring in concrete through chemical bonding.
Product Certification：
Load capacity report / 240-hour salt spray test report / Load capacity report for cracked concrete / High-temperature welding report / 120-minute fire resistance report / Load capacity under repeated crack opening / CE certification
Scope of application：
Suitable for post-installed chemical anchoring in concrete: curtain walls, steel structures, equipment supports and building strengthening.
Product Advantages
Dual anchoring, high load capacity
A combined mechanical keying and chemical bonding structure delivers excellent pull-out and shear performance for heavy-duty applications.
Zero expansion stress, wide compatibility
The special inverted-cone design creates no expansion pressure, making it safe for small edge distances, tight spacings and cracked concrete.
Stable performance, long service life
Heat resistant and weldable, with anti-corrosion and anti-ageing properties and a high seismic rating. The anchor stays secure over long-term use.
Technical parameters
| Material | Carbon steel、304、316 |
| Grade | Grade 8.8 |
| Surface treatment | Zinc plated、Hot-dip galvanised |
| Substrate | Cracked concrete、Non-cracked concrete |
Specification and Model
| Product model | Anchor dia.φ（mm） | Hole dia. d (mm) | Hole depthh（mm） | Anchor length l (mm) |
|---|---|---|---|---|
| M10×130 | M10 | 12 | 90 | 130 |
| M12×160 | M12 | 14 | 110 | 160 |
| M16×190 | M16 | 18 | 125 | 190 |
| M20×260 | M20 | 24 | 170 | 260 |
| M24×300 | M24 | 28 | 210 | 300 |

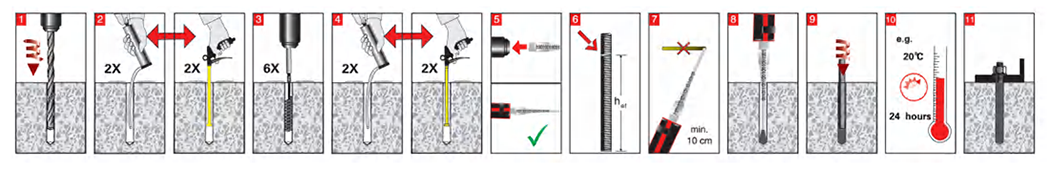

Operating Instructions
