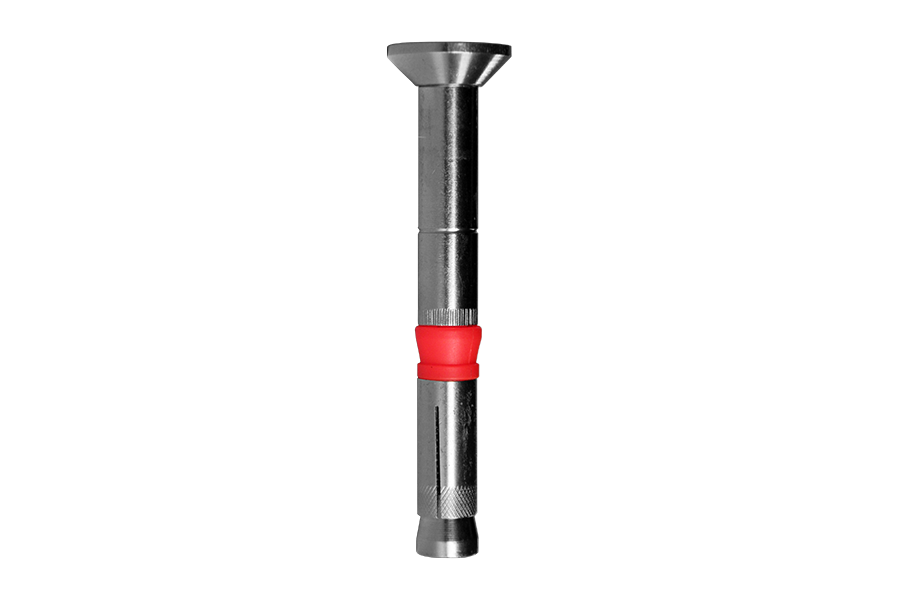

PHL Heavy-duty Anchor

A mechanical expansion anchor with stable locking, high load capacity and good seismic performance, designed for heavy-duty post-installed anchoring in concrete.

Product Certification：
Tensile & shear/CE/Fatigue resistance

Scope of application：
Widely used for heavy structural fixing: curtain wall load-bearing brackets, steel structure supports, large equipment bases and pipe hangers.

Product Advantages

Even expansion, outstanding heavy-load capacity

A split, multi-slot expansion sleeve opens evenly in all directions when tightened, gripping a large area of the hole wall. Excellent pull-out and shear performance for heavy equipment bases, large steel structures and curtain wall mullions.

Integral sealing ring for controlled, leak-free installation

A red rubber limit ring precisely controls anchoring depth and blocks mortar and moisture from entering the hole. Reduces over-tightening and false locking, giving reliable anchoring on external walls and in damp underground conditions.

Countersunk design for concealed installation

The countersunk cone allows the head to sit flush within the component for a clean finished surface. Fully zinc-plated for corrosion protection, with resistance to vibration and loosening over long-term dynamic service.

Technical parameters

Material	Carbon steel、304、316
Grade	Grade 8.8
Surface treatment	Zinc plated、Hot-dip galvanised
Substrate	Cracked concrete、Non-cracked concrete

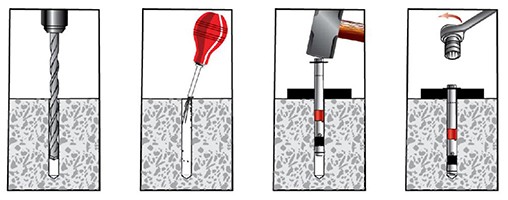

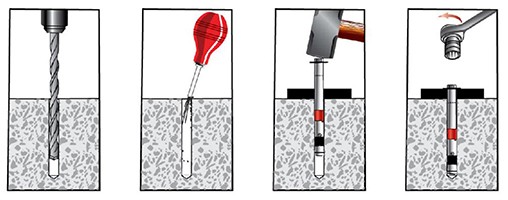

Specification and Model

Product model	Rod dia. φ (mm)	Hole dia. d (mm)	Hole depthh（mm）	Installation torque (N·m)	Anchor length l (mm)
M8×85	M8	12	80	25	85
M8×100	M8	12	80	25	100
M8×120	M8	12	80	25	120
M10×95	M10	15	90	50	95
M10×110	M10	15	90	50	110
M10×130	M10	15	90	50	130
M12×110	M12	18	105	80	110
M12×130	M12	18	105	80	130
M12×155	M12	18	105	80	155
M16×140	M16	24	125	120	140
M16×155	M16	24	125	120	155
M16×180	M16	24	125	120	180
M20×165	M20	28	155	200	165
M20×185	M20	28	155	200	185
M20×215	M20	28	155	200	215
