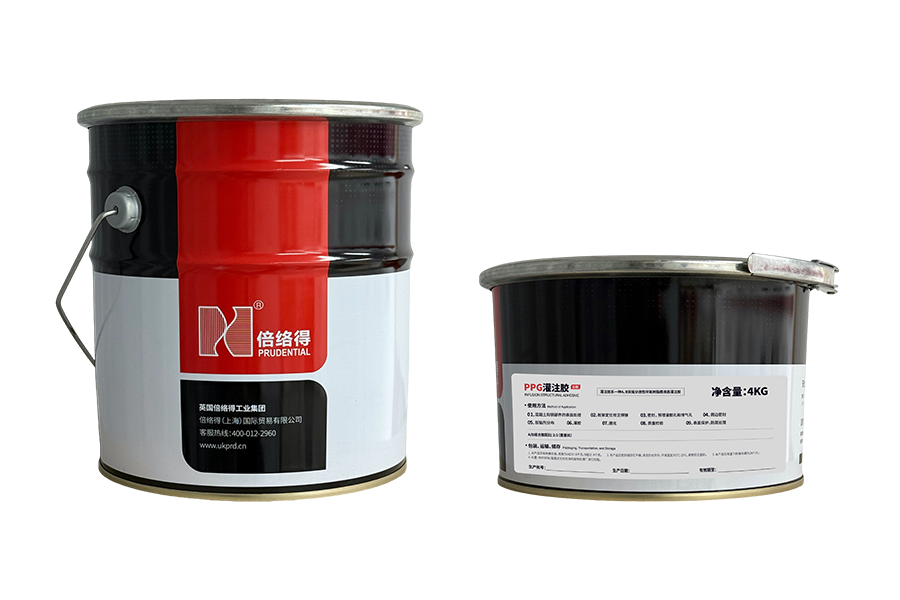

PPG Grouting Adhesive
The Prudential grouting adhesive is a two-component epoxy for injecting between steel plates and concrete. It fills gaps completely and ensures composite action in strengthening works.
Product Certification：
Safety appraisal report / VOC / Hazardous substances report / Acute toxicity report
Scope of application：
Suitable for wet jacketing of reinforced concrete beams and columns, steel plate bonding on large-section members, and grouted steel plate bonding for bridge components with plates 5 mm or thicker. Meets continuous dynamic loading requirements, enabling the steel plate and original structure to act together.
Product Advantages
High mechanical performance for dynamic loading
Excellent bond and shear strength with outstanding impact and fatigue resistance. Meets steel-to-concrete bonding requirements for bridges and roads under dynamic loads.
Stable curing, highly workable
Cures across a wide temperature range and under normal room temperature. The curing process is stable and unaffected by site vibration, with no volatile solvents and low shrinkage.
Outstanding weather and durability performance
Excellent ageing resistance and resistance to acids, alkalis and water. Performance remains stable over long service, keeping the strengthening system safe.
Technical parameters
| Material | A/B two-component epoxy adhesive |
| Substrate | concrete |
| Tensile strength | ≥30 MPa |
| Modulus of elasticity | ≥2500 MPa |
| Flexural strength | ≥45 MPa |
| Compressive strength | ≥65 MPa |
| Elongation | ≥1.2% |
| Non-volatile content | ≥99% |
| Steel-to-steel tensile bond strength | ≥33 MPa |
| Steel-to-C45 concrete tensile bond strength | ≥2.5 MPa |
| Steel-to-steel tensile shear strength | ≥15 MPa |
Specification and Model
| Product spec | Item no. |
|---|---|
| 8kg:4kg | 31130016 |
Operating Instructions
